Delta P - Hygenic Process Equipment

C Header afsluiters 28 01 Definox

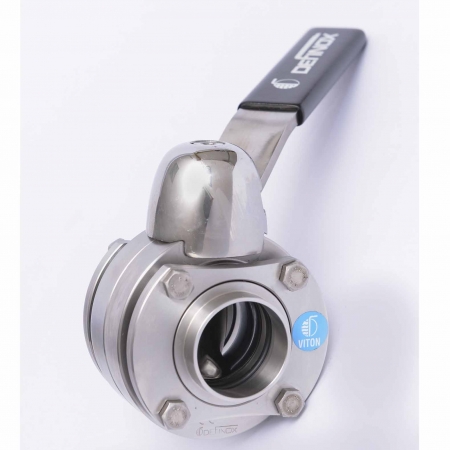

Interfl. butterfly DPX EBC-DPAX EBC

Interfl. butterfly DPX EBC-DPAX EBC

Download bijlagen:

The Definox butterfly valve range has a compact interflange version for quick assembly and disassembly on process lines.



Features

  • New compact interflange valve design
  • O-rings that seal between the half bodies and the flange
  • Quick assembly and disassembly
  • Can be used for a variety of applications
  • Low pressure loss and line transfer without retention
  • Easy to adjust operating devices

Materials

  • Half body: stainless steel 1.4404 / 316L
  • Disc: stainless steel 1.4404 / 316L
  • Weld end: stainless steel 1.4404 / 316L
  • Seal: EPDM - fluorinated elastomer (FKM) or silicon
  • Flange and fastening: stainless steel 1.4301 / 304
  • Operating devices: stainless steel 1.4301 / 304

Service conditions

  • Max. temperature: + 120oC, depending on seal type
  • Min. temperature: 0oC/+32oF
  • Max. working pressure:
    • 14 bar (1400 kPa) / 203 psi DN 25 to DN 51
    • 12 bar (1200 kPa) / 174 psi DN 63 to DN 80
    • 10 bar (1000 kPa) / 145 psi DN 100
    •   8 bar   (800 kPa) / 116 psi DN 125 to DN 150
  • Actuator air supply pressure:
    • min. 5,5 bar (550 kPa) / 80 psi
    • max. 8 bar (800 kPa) / 116 psi
  • Vacuum resistance: 0,4 cm3/s
