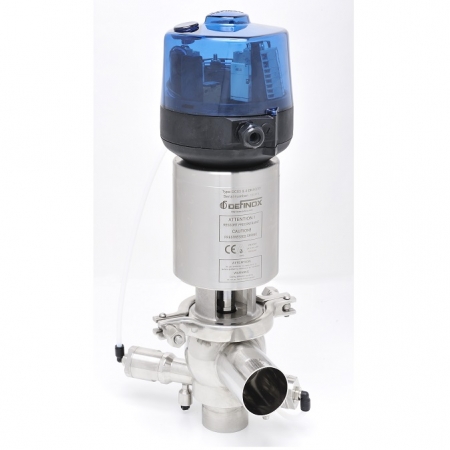

Diaphragm changeover valve DCX3

Diaphragm changeover valve DCX3

Technische gegevens

  • Dimensions: SMS - DIN - US; from DN25 (1") to DN150 (6") Deformable sealing diaphragm in PTFE and alcohol barrier. On request available up to DN250 (10").

Features

  • Same features as standard DCX3 (floating seal, thick body, etc.)
  • Fitted: with PTFE (PolyTetraFluorEthylene) diaphragm to ensure a physical barrier between the inside of the valve and the outside environment, and with microvalve to warn of a leak or possible seal damage
  • The stroke on these valves is slightly shorter than on a standard DCX valve

Service conditions

  • Max. temperature: +140oC/+284oF (temperature depending on seal type)
  • Min. temperature: +1oC/+33,8oF
  • Max. working pressure: 8 bar (800 kPa)/116 psi
  • Actuator air supply pressure: min. 5.5 bar (550 kPa) /80 psi; max. 8 bar (800 kPa)/116 psi
  • Vacuum resistance: 0.4 cm3/s
