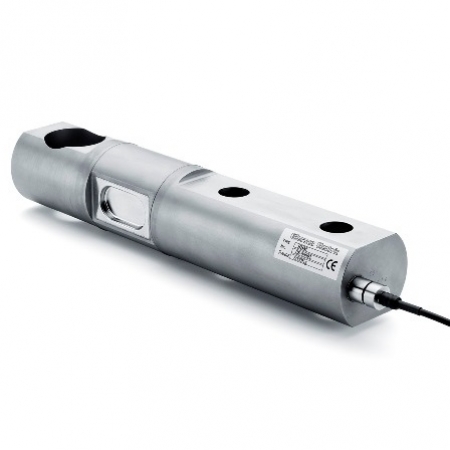

Robust digital heavy duty beam load cell produced in stainless steel and hermetically sealed to IP68. For example for process weighing, industrial weighing and tough applications such as on-board truck weighing, offshore, steel industry etc. OIML certified (up to C5) according to R60.
Type: SDM 80
Capacity (Emax): 5000, 6000, 7000 kg
Accuracy: Industrial 0.10% up to OIML class C5
Overload tolerance: Up to 1000% of rated capacity
Special features:
- Stainless steel
- Made in Denmark
- Robust capacitive technology
- Patented high reliability capacitive sensor
- OIML R60 accuracy classes up to C5
- High tolerance of up to 1.000% overload
- Hermetically sealed to IP68
- Laser welded
- High accuracy, High resolution
- Digital filters
- Capacity (Emax): 5000, 6000, 7000kg
- Accuracy: Industrial 0.10% up to OIML class C5
- Cable length up to 100meters
- Calibration independent of cable length
- Load cell cable replaceable
- Withstands welding voltages and ESD
- Easy mechanical and electrical installation
Options:
- Mounting kits available
- Customized versions available
- Load cell cable length 10, 20, 50 or 100meters
- Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
- Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
Click here for examples of SDM80 Digital Beam Load Cells
