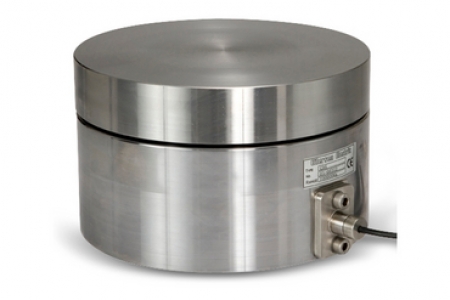

Compression Load Cell-GDS500

Robust digital heavy duty compression load cell produced in stainless steel and hermetically sealed to IP68. For example for installation under large silos, tanks, vessels and heavy duty applications.



Type: GD S500

Capacity (Emax): 200, 300, 400, 500 tons

Accuracy: Industrial 0.25%

Overload tolerance: Up to 300% of rated capacity



Special features:

  • Robust capacitive technology
  • Made in Denmark
  • Patented high reliability capacitive sensor
  • High tolerance of up to 400% overload
  • Stainless steel
  • Hermetically sealed to IP69K
  • Laser welded
  • Withstands welding voltages and ESD
  • Capacity (Emax): 200, 300, 400, 500tons
  • Accuracy: Industrial 0.25%
  • Cable length up to 100meters
  • Load cell cable replaceable
  • Pre-calibrated with signal in kg or kN
  • Easy mechanical and electrical installation
  • Calibration independent of cable length

Options:

  • Load cell cable length 10, 20, 50 or 100meters
  • Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
  • Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
  • Customized versions available

Click here for examples of GDS Digital Compression Load Cells
