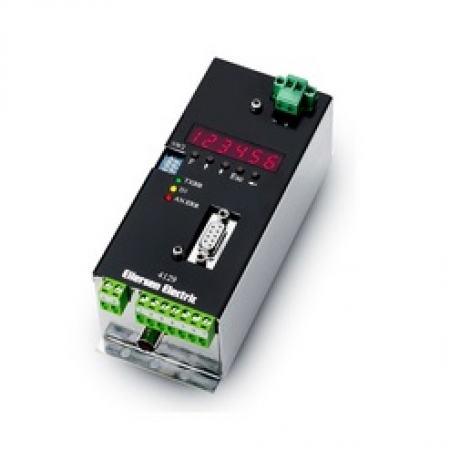

Analog output module. Featuring a small LED display, 4-20mA or 0-10Vdc active output and RS485 interface. The module also features four I/O for level alarms and remote tarering. This module can directly connect to up to four digital ATEX load cells for use in non-ATEX installations.
Type: 4X29
Interface: Analog output (4-20mA or 0-10Vdc active output) and RS485 interface
Special features:
- Analog 4-20mA or 0-10Vdc ACTIVE output
- Made in Denmark
- Digital RS485 serial communication
- Six character LED display
- 2 digital inputs + 2 digital outputs
- Weighing module for up to 4 digital load cells
- Shows the weight on each of the connected load cells
- Shows the summed weight for the connected load cells
- Configurable measuring time (40ms -> 4sec)
- 16bit D/A converter
- 3 different FIR filters selectable by dip switches
- Plug-and-play installation with Eilersen digital load cells
- Input for zero and tare
- Application specific software can be made by request
- A "Digital Junction Box" that can be mounted near the load cells or in a central panel
Options:
- Prepared for panel mounting on DIN rail
- Mounted in stainless steel housing
- Customized application software
- OEM version
