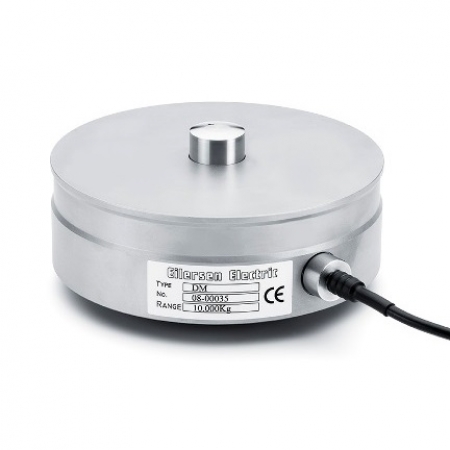

Robust digital (ATEX certified) compression load cell produced in stainless steel and hermetically sealed to IP68. For example for hygienic weighing installations, installations in tough environments and general process weighing. The DM(A) compression load cell can be used in ATEX (Ex) and non-ATEX applications.
Type: DM (Non-ATEX), DM(A) (ATEX)
Capacity (Emax): 6000, 8000, 10000, 15000, 25000, 50000 kg
Accuracy: Industrial 0.10%, Precision 0.05%
Overload tolerance: Up to 400% of rated capacity
Special features:
- DM(A) is ATEX certified (Zone 1, 2, 21, 22)
- Made in Denmark
- Robust capacitive technology
- High tolerance of up to 400% overload
- Stainless steel
- Hermetically sealed to IP68
- Laser welded
- Low profile and hygienic design
- Can be supplied with Mud resistant and Halogen free cables for offshore installation
- Withstands welding voltages and ESD
- Capacity (Emax): 6000, 8000, 10000, 15000, 25000, 50000kg
- Accuracy: Industrial 0.10%, Precision 0.05%
- Load cell cable replaceable
- Pre-calibrated with signal in kg or N
- Calibration independent of cable length
- Cable length up to 100meters
- Easy mechanical and electrical installation
- Can be used in both ATEX and non-ATEX installations
Options:
- ATEX (Zone 1, 2, 21, 22) version type DMA
- ATEX II 2G Ex ia IIC T6 / ATEX II 2D Ex iaD 21 T85°C
- Mud resistant and Halogen free cables for offshore installation
- Base plate available
- Load cell cable length 10, 20, 50 or 100meters
- Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
- Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
